Accessories
Electric locks
Glass Drop Bolt Lock
Electromagnetic Lock
Surface Mount Lock
Drop Bolt Lock
Strike Lock

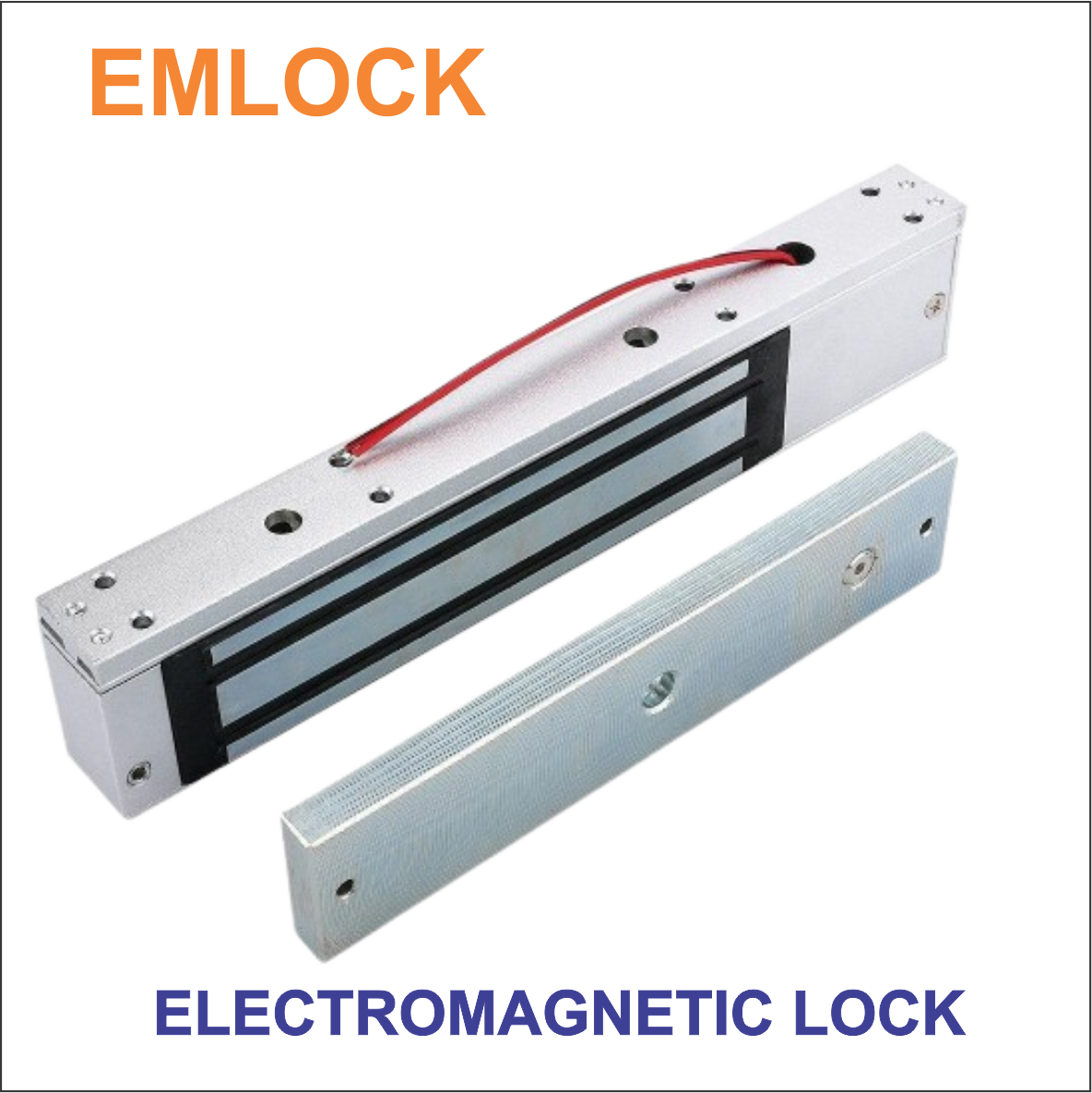

EM Lock (Electromagnetic Lock)
- Consists of an electromagnet and an iron armature plate.
- Typically, the electromagnet coil is mounted on the door frame, while the armature plate is fixed on the door.
- When powered, the electromagnet attracts the armature plate, locking the door securely.
- Simple, frictionless operation with no moving parts.
- Available in:
Fail-Safe (Unlocks when power fails)

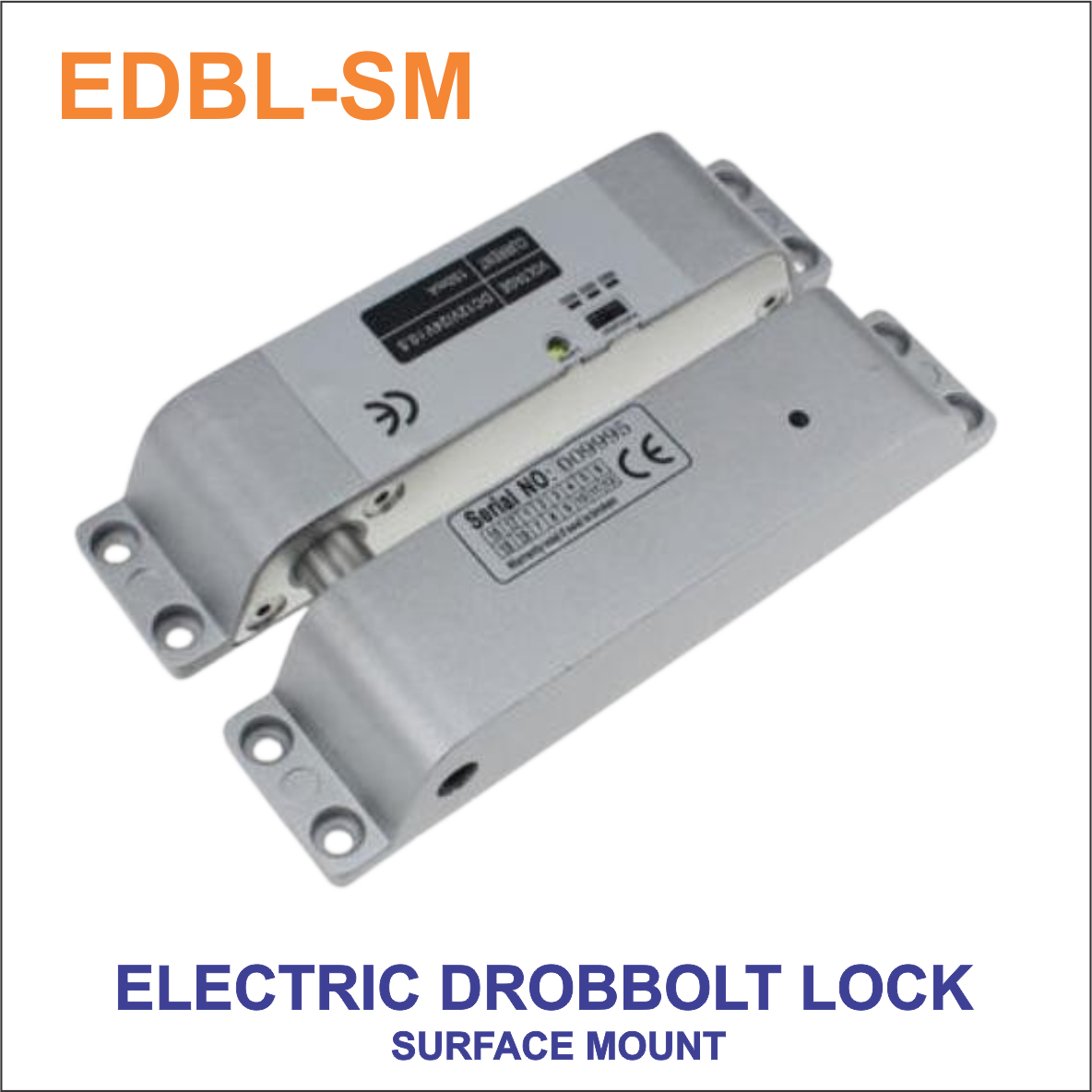

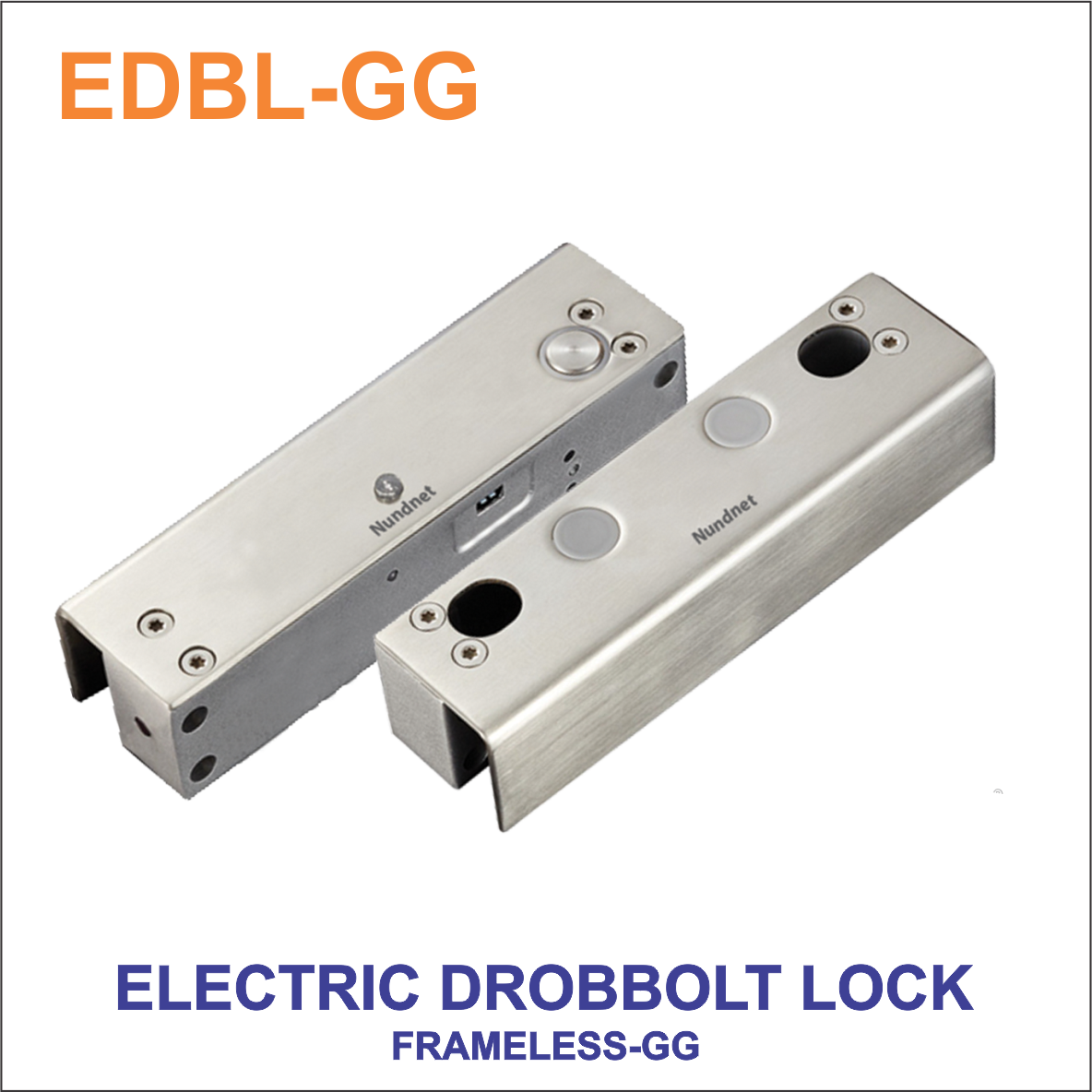

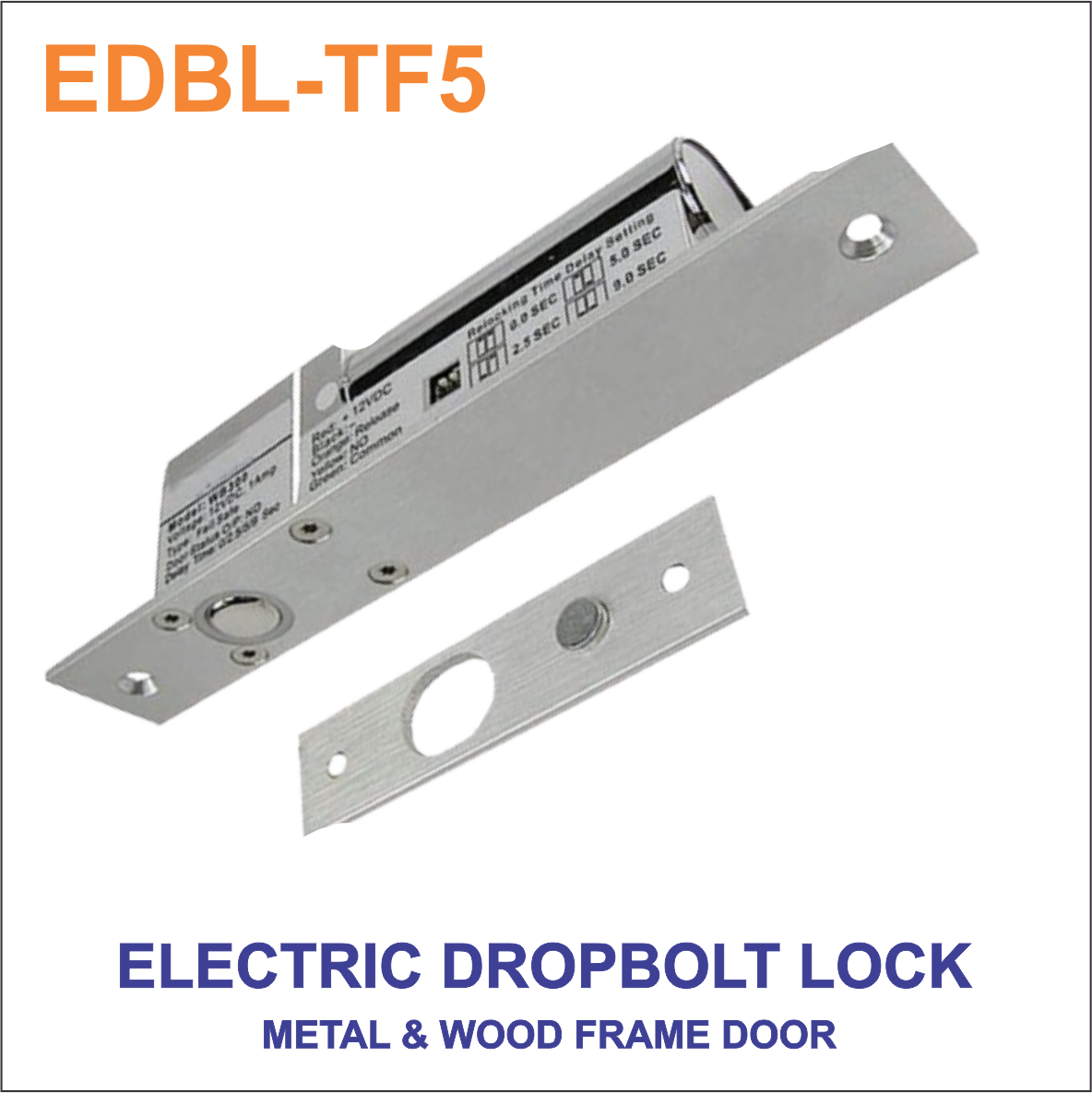

Electric Dropbolt Lock (Deadbolt Lock)
- Also known as a Deadbolt Lock.
- Operates through an electromechanical actuator.
- When powered, the actuator rod projects outward, inserting into the door frame, and locks the door.
- Feedback armature plate provides door position status.
- Suitable for frameless glass doors, wooden doors, and sliding doors.
- Available in:
Fail-Safe (Unlocks when power fails)

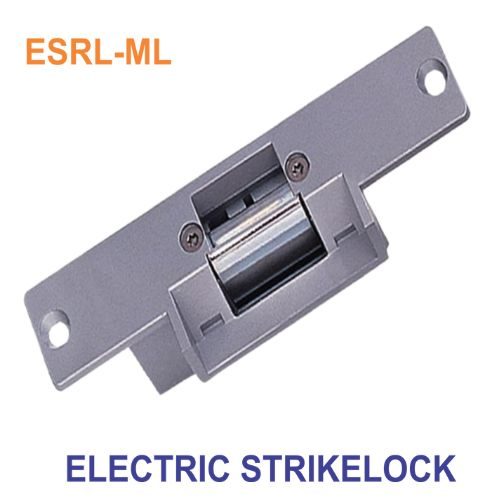

Electric Strike Lock (Mortise Lock)
- Also referred to as a Mortise Lock.
- Works via an electromechanical actuator connected to a swivel tongue.
- When powered, the actuator locks the swivel tongue, preventing door movement.
- A mechanical plunger, fixed on the door, plunges into the strike mechanism, locking the door automatically.
- Compatible with wooden, metal, or aluminum frame doors.
- Available in:
Fail-Safe (Unlocks when power fails)
Fail-Secure (Locks when power fails)
Exit Switches

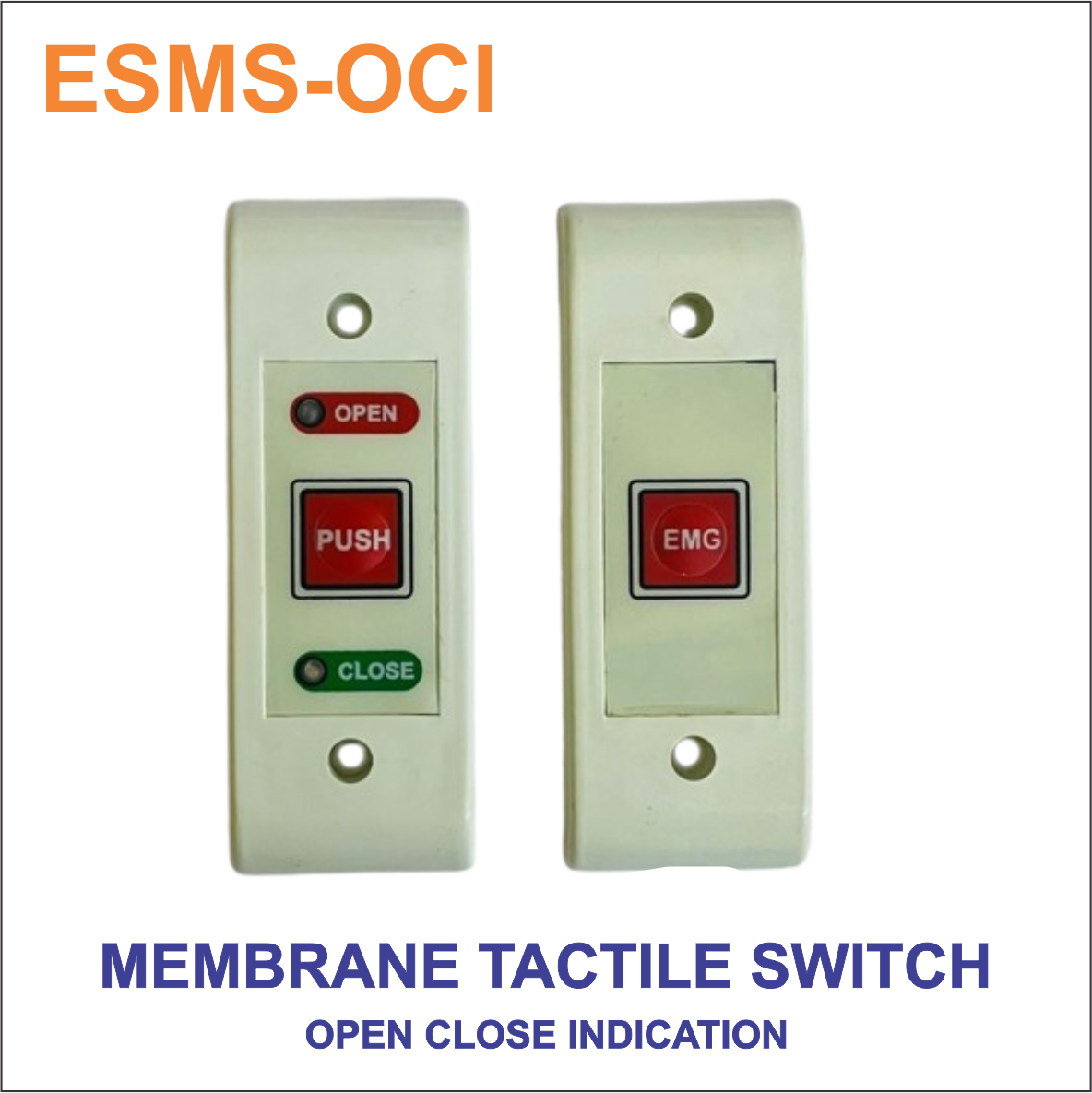

Membrane Switch
It is a Tactile Switch signalizing device with COM, NO Operation. Low current operation of App 50ma DC, It has OPEN & CLOSE Indication. The Indication operates with Door FB Signal.

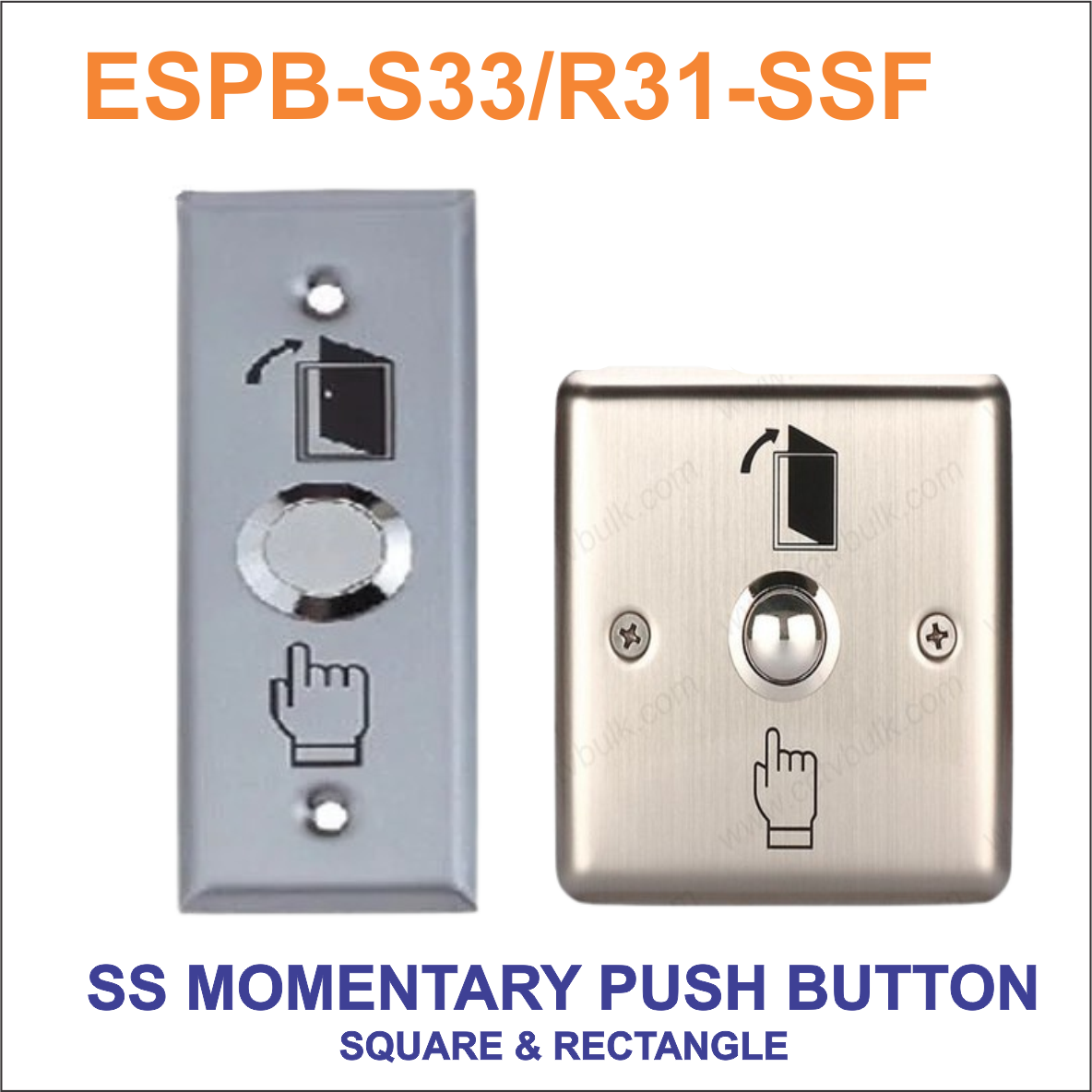

SS Momentary Switch
It is Momentary Switches with Potential Free contact with COM, NO / COM, NO,NC.

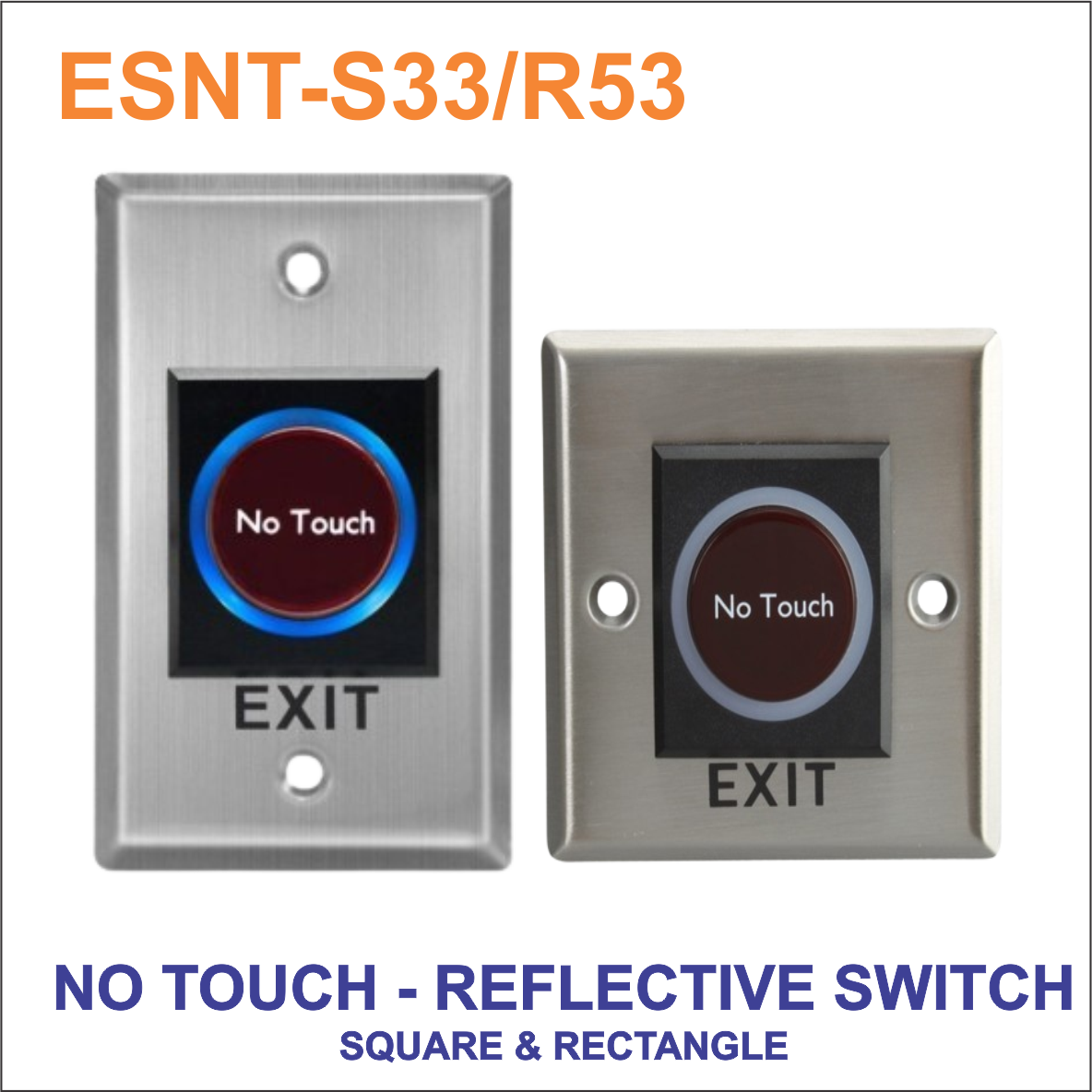

No Touch Exit Switch
It is Electronically Operated IR reflectivity switch for ON & OFF Switch with fixed delay of 2Sec Delay. It has Potential free contact with COM, NO,NC
Lock Mount Brackets

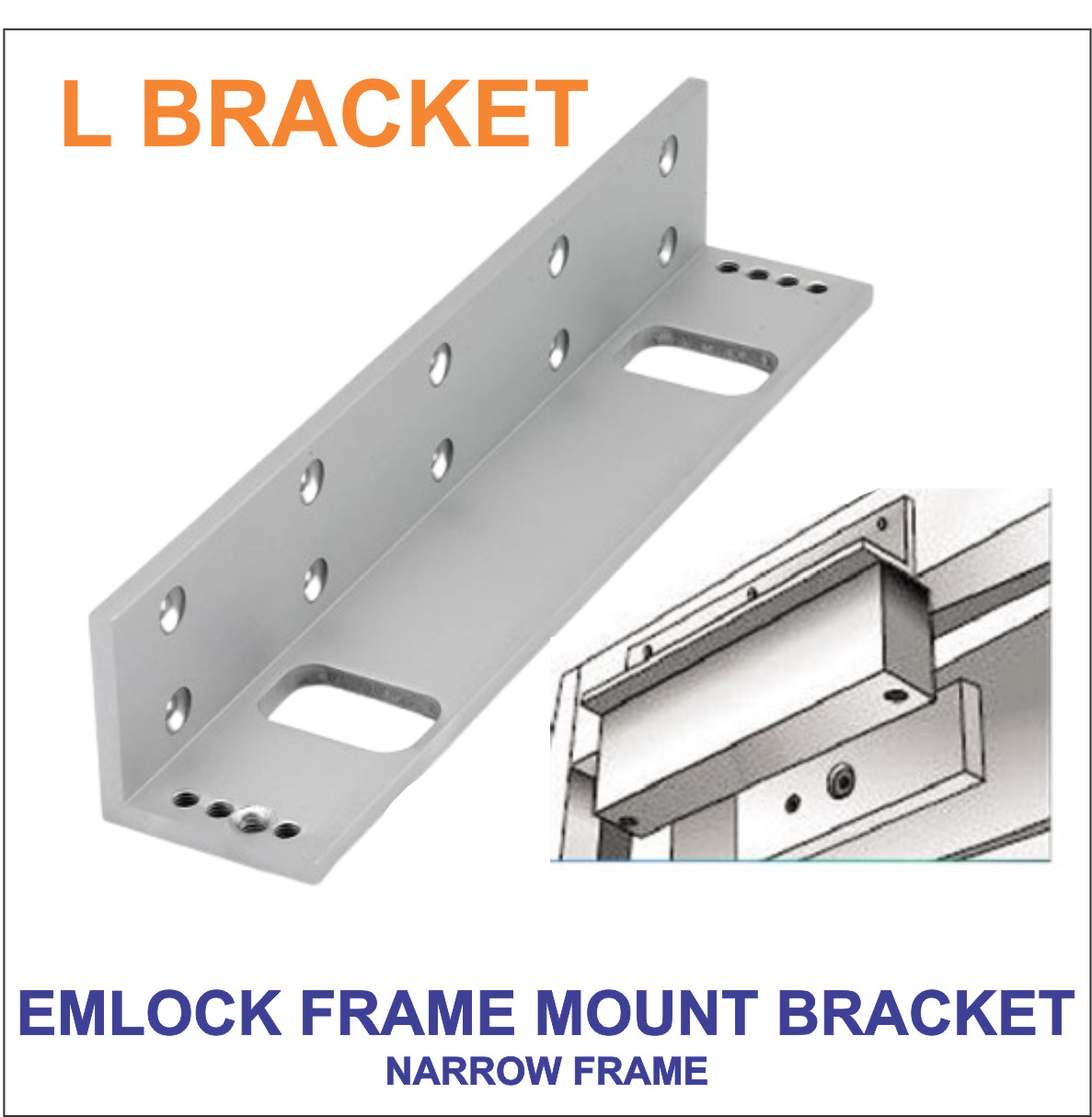

L-Bracket

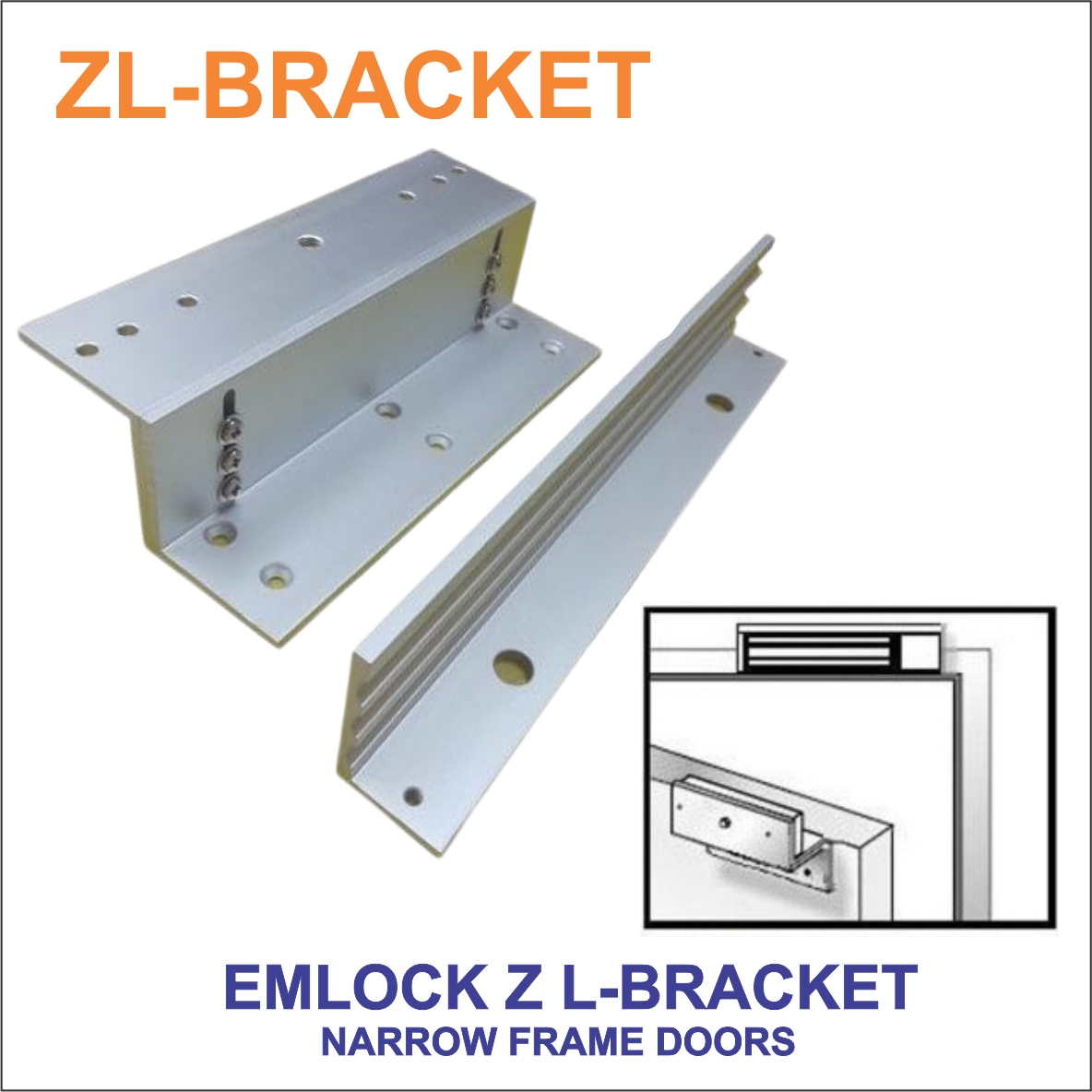

L-Z-Bracket

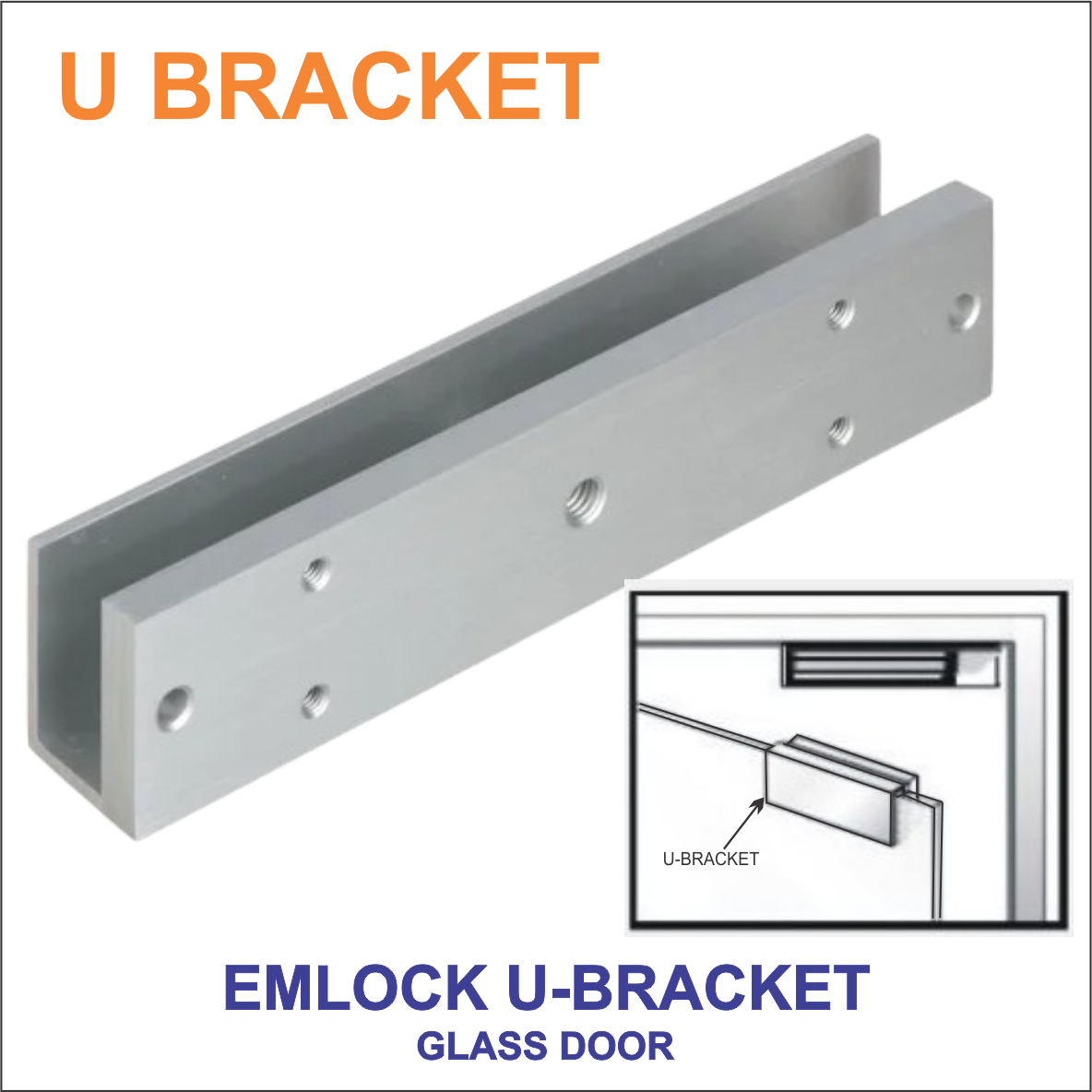

U-Bracket

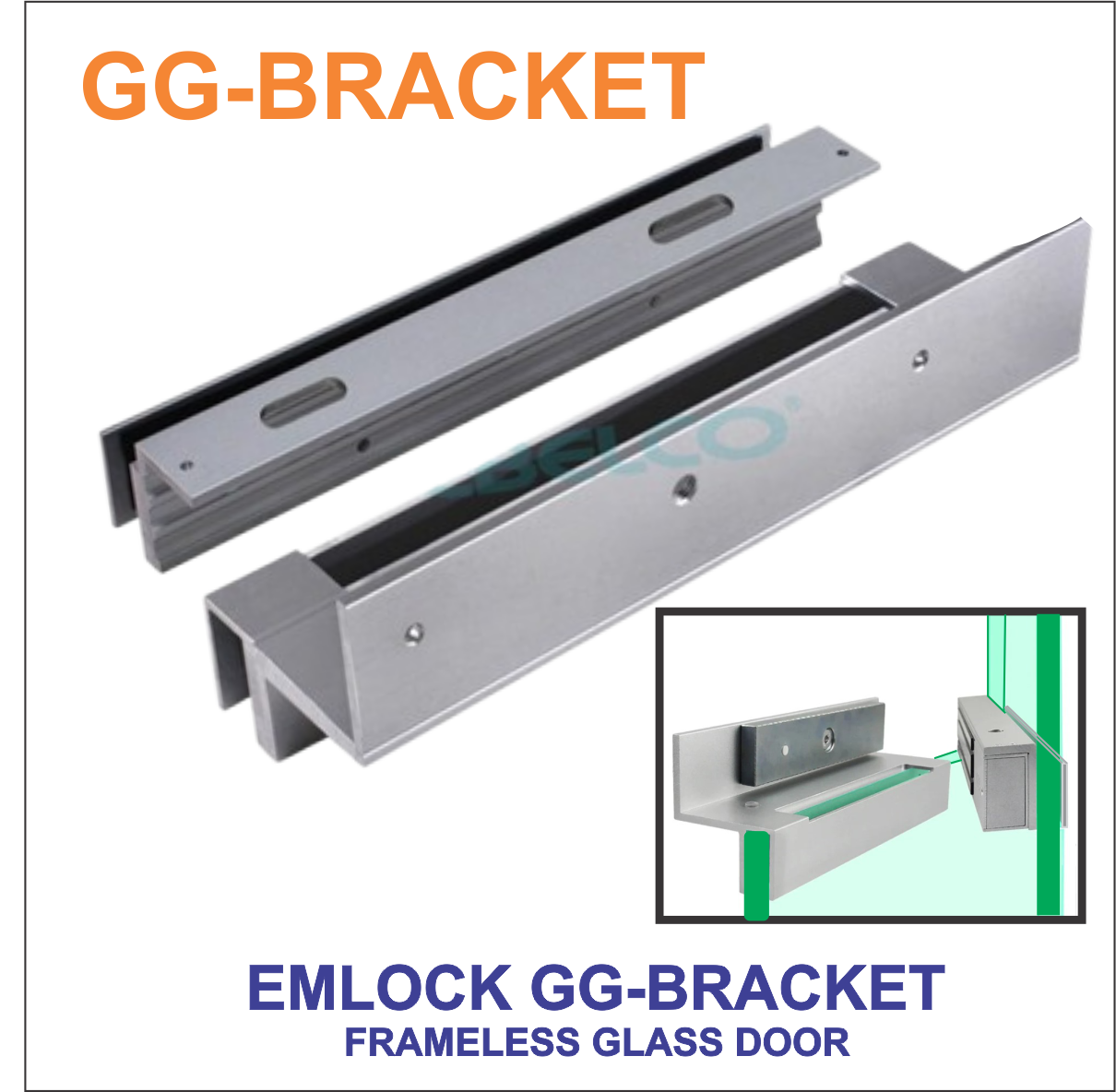

G-G Aluminum Lock Fixing Bracket
- It is an Aluminium Extruded device clamp to hold the EM Lock on the Door Frame.
- It comes with difference Size and Shape to match the Frame and door.
- Bracket with Shape of “ L / Z / U / Z U L etc.
- These Brackets are for mounting Electric Locks and Armature Plate on a Narrow Door Frame or Glass Doors and Frame-less Glass Door
- They contribute to the overall by providing a solid platform for the lock’s components
Flame Proof
- Manual Call Point (MCP)
- A Manual Call Point (MCP) is a notifier device used during fire emergencies to raise an alarm.
- MCPs require human intervention to activate.
- They are installed in hazardous or strategic areas to allow occupants to quickly alert others and evacuate to a safe zone.
- MCPs are connected to a central Fire Alarm Panel, which in turn is linked to the alarm system and door controllers.
- MCPs are generally located along escape routes to enable quick activation of the alarm, facilitating timely evacuation and reducing unnecessary risk to individuals.
- Types of MCP Models:
- MCP Glass Break Switch
- Break the glass using a small hammer to activate the alarm.
- MCP Pull Switch
- Pull a lever to trigger the alarm.
- MCP Resettable Type
- Press to activate the alarm.
- Can be reset after activation.
