Robust Door Controller at Your Fingertips

Compatible with RFID, Biometric & Keypad Systems

Multi- Door Access Controller

Description
  • Door controllers are multi-door controller of an access control system, They act as a central hub, connecting and directing various hardware components like card readers, keypads, biometric scanners, and electronic lock by connecting several entry points in a network,
  • The function of Door Controllers are preventing unauthorized individuals from entering a secured area through the door.
  • The Device significantly enhances the security of a building or premises.

Logging and Reporting:

  • Door controllers, especially in networked systems & servers, and can log access events and provide reports for security audits and management purposes.

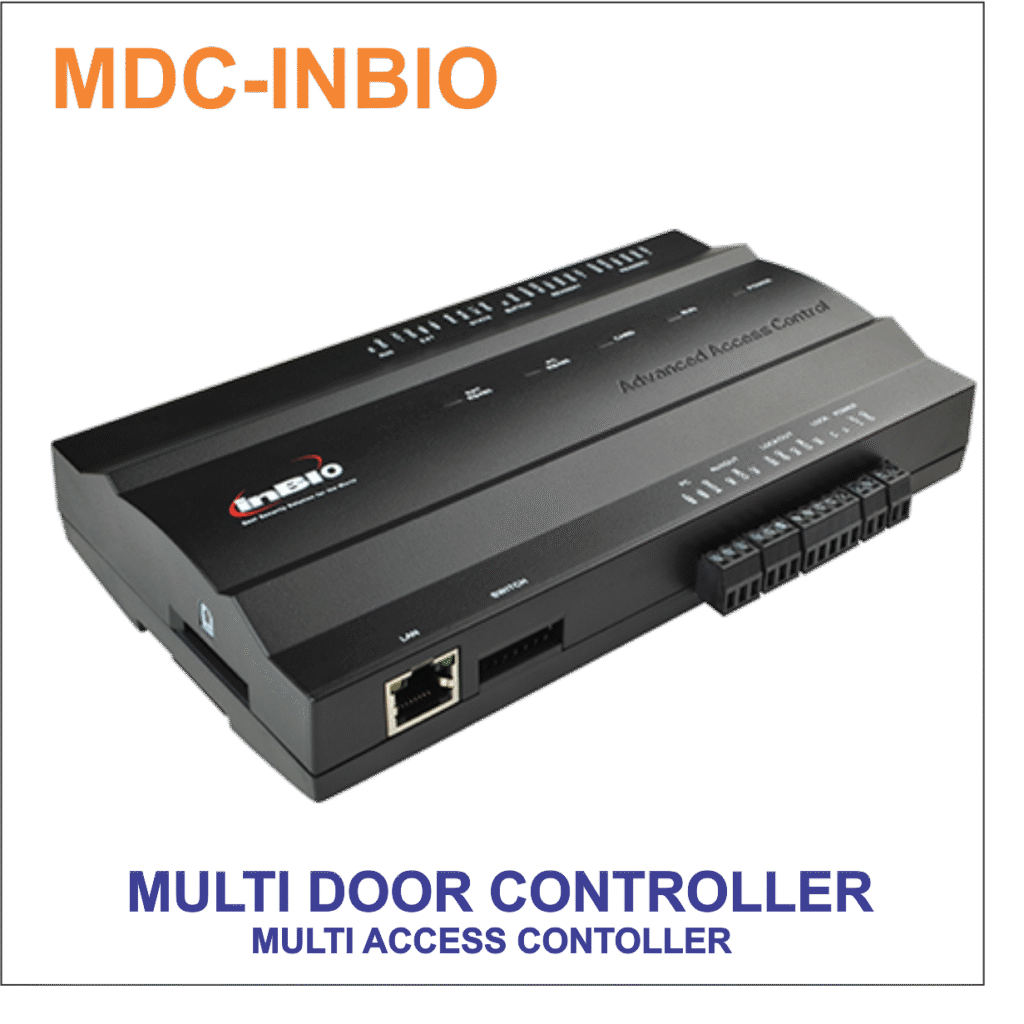

Multi Door Controller from Ace controltech

Specifications

  1. Number of Doors Controlled: 2,4,8,16,32
  2. Readers Supported: 4 RS-485, 26-bit Wiegand readers
  3. Reader Types Supported: 26-bit Wiegand, RS485 FR Series
  4. Card Holder Capacity: 30,000 users
  5. Fingerprint Capacity: 3,000 templates
  6. Event Log Capacity: 100,000 logs
  7. Communication Interfaces: TCP/IP, RS-485
  8. CPU: 32-bit, 400MHz
  9. RAM / Flash Memory: 32M RAM / 128M Flash
  10. Power Supply: 9.6V – 14.4V DC
  11. Operating Temperature: 0°C to 45°C
  12. Operating Humidity: 20% to 80%

Product Features

  • Embedded fingerprint verification for enhanced security.
  • Supports both Wiegand and RS485 readers for flexible system architecture.
  • TCP/IP and RS-485 dual communication options.
  • Compatible with  2, 4, 8, and 16  configurations within a unified network.
  • Real-time data storage ensures no loss during power or connection failure.
  • Advanced access control features:
    • Anti-passback
    • Interlock function
    • First-card and multi-card opening
    • Duress password support
  • Built-in auxiliary input/output linkage capabilities.
